PC Tel BMOY4405 5-element Yagi antenna

Introduction

The Author has been making commercial antennas for years. This is a report for a another commercially made one.

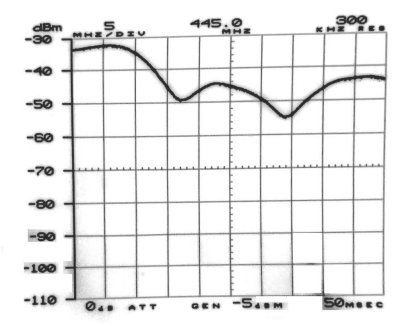

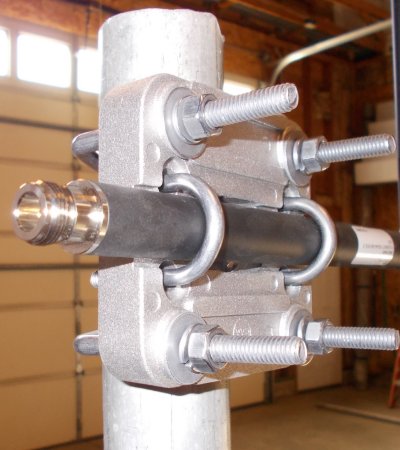

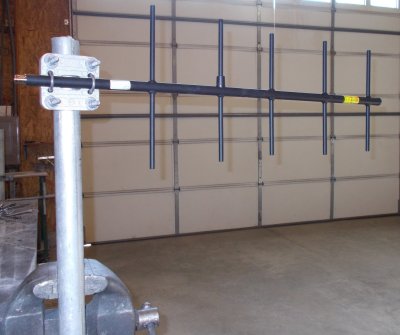

This one is built for a medium duty application for an amateur station on a remote high site with some ice loading. Being a yagi (beam) it consists of five elements. It has acceptable return loss of 16 db at the Authors operating frequency. The feed point is terminated with a type N female connector and is at the end of the boom. The Author would recommend this antenna for repeater use at a medium to high site that does not have much of harsh winter conditions such as ice loading.


This may be copied in complete form only for non-profit purposes, such as for the knowledge for the Amateur Radio Service, with the Author credited as designer. For other arrangements please contact the Author.
